Brand: Hayward | Part #: W3H250FDP
Hayward Universal H-Series Propane Gas Heater | 250,000 BTUs | Low NOx | HPPW3H250FDP

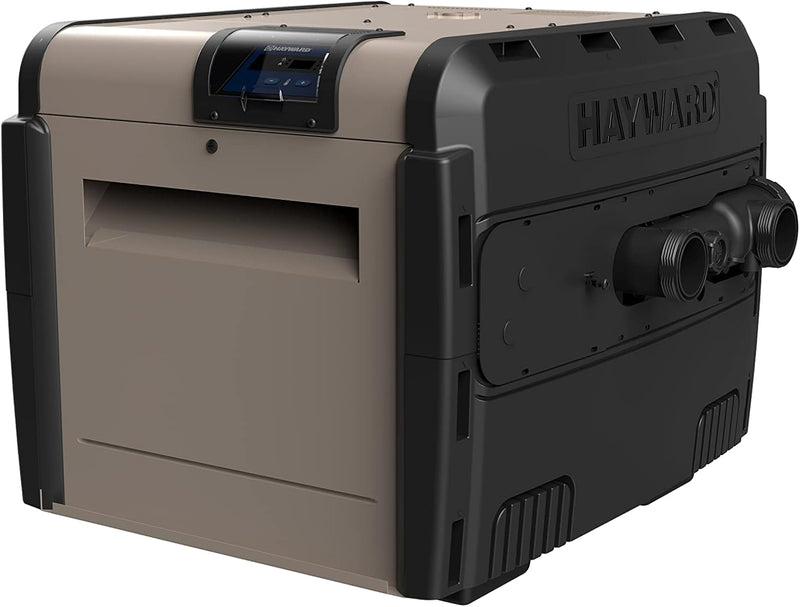

Hayward Universal H-Series Propane Gas Heater 250,000 BTUs
The Universal H-Series 250,000 BTU Propane Gas Pool & Spa Heater from Hayward provides reliable, long-lasting comfort for pools and spas with a surface area up to 740 ft. The Hayward Universal H-Series gas heater is the “universal” energy efficient remedy for any new or existing pool or spa. An industry-leading hydraulic design reduces circulation pump run time to provide energy savings of up to 18% when compared to less efficient competitors. The energy efficiency of the Universal H-Series gas heater combines with environmentally friendly low NOx emissions, a standard cupro nickel heat exchanger, and ultimate installation flexibility to responsibly heat a pool or spa today and for years to come.
Features and Benefits
- Standard cupro-nickel heat exchanger
- Excellent salt water and chemical corrosion resistance
- Exclusive "Totally Managed" cupro nickel heat exchanger water flow
- Same water velocity through all tubes for faster heating
- Patented header by-pass design
- Reduction in pump run-time results in significant cost savings

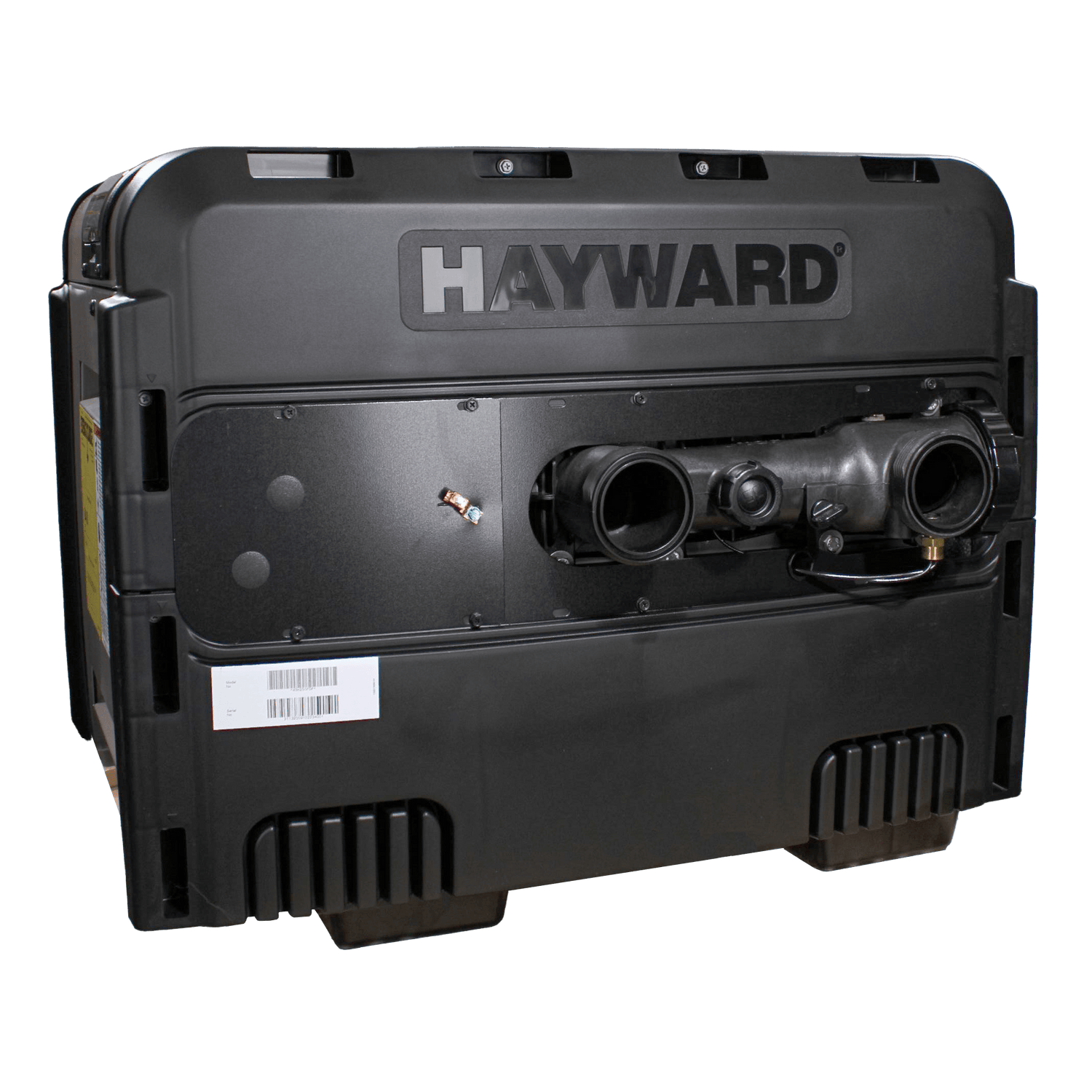

- 2in x 2 1/2in CPVC union plumbing connections
- The forced draft system constantly moves air through the combustion chamber at a precise flow rate, eliminating the need for a high-wind stack
- Low NOx emissions - meets clean air quality standards
Attribute | Value |
---|---|
Active Defrost | No |
Boost Mode | No |
Brand | Hayward |
Channel | Open Line |
Circuit Amps | 5.5000 |
Cooling Capability | No |
Fuel Type | Propane |
Heating Capacity (BTU/hr) | 250000 |
Hertz | 60 Hz |
Kilowatts | 73 kW |
Low Ambient Operation | Yes |
Master Carton Qty | 1 |
Maximum Fuse Breaker Size (Amps) | 15.0000 |
Phase Heaters | 1.0000 |
Pool Type | In Ground |

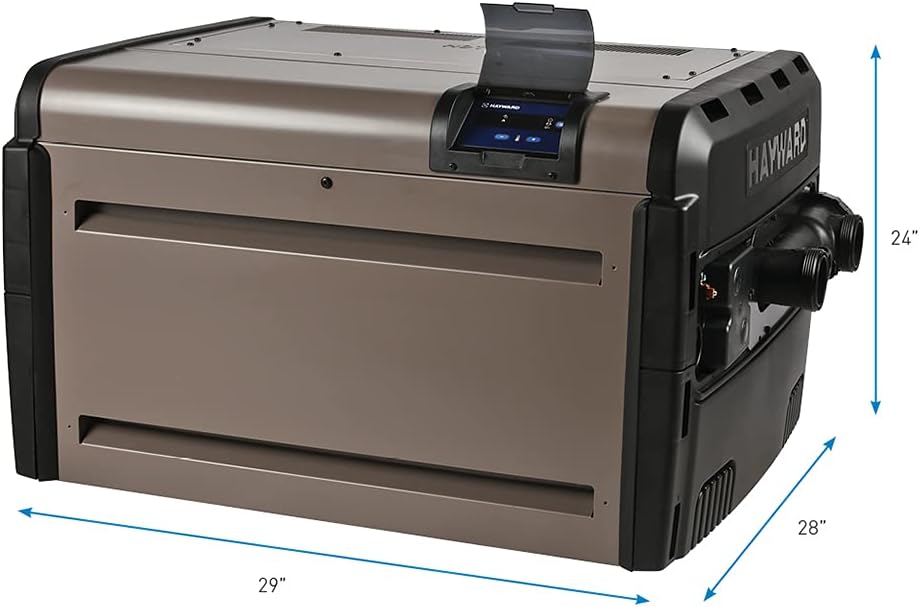

Product Dimensions | 24 " x 25 " x 29.5 " |
Rear Clearance - Heaters | 6 in |
Refrigerant | No |
Series Heaters | Universal HSeries |
Side Clearance - Heaters | 12 in |
Silent Mode | No |
Water Flow Rate Max | 125 |
Water Flow Rate Min | 25 |
