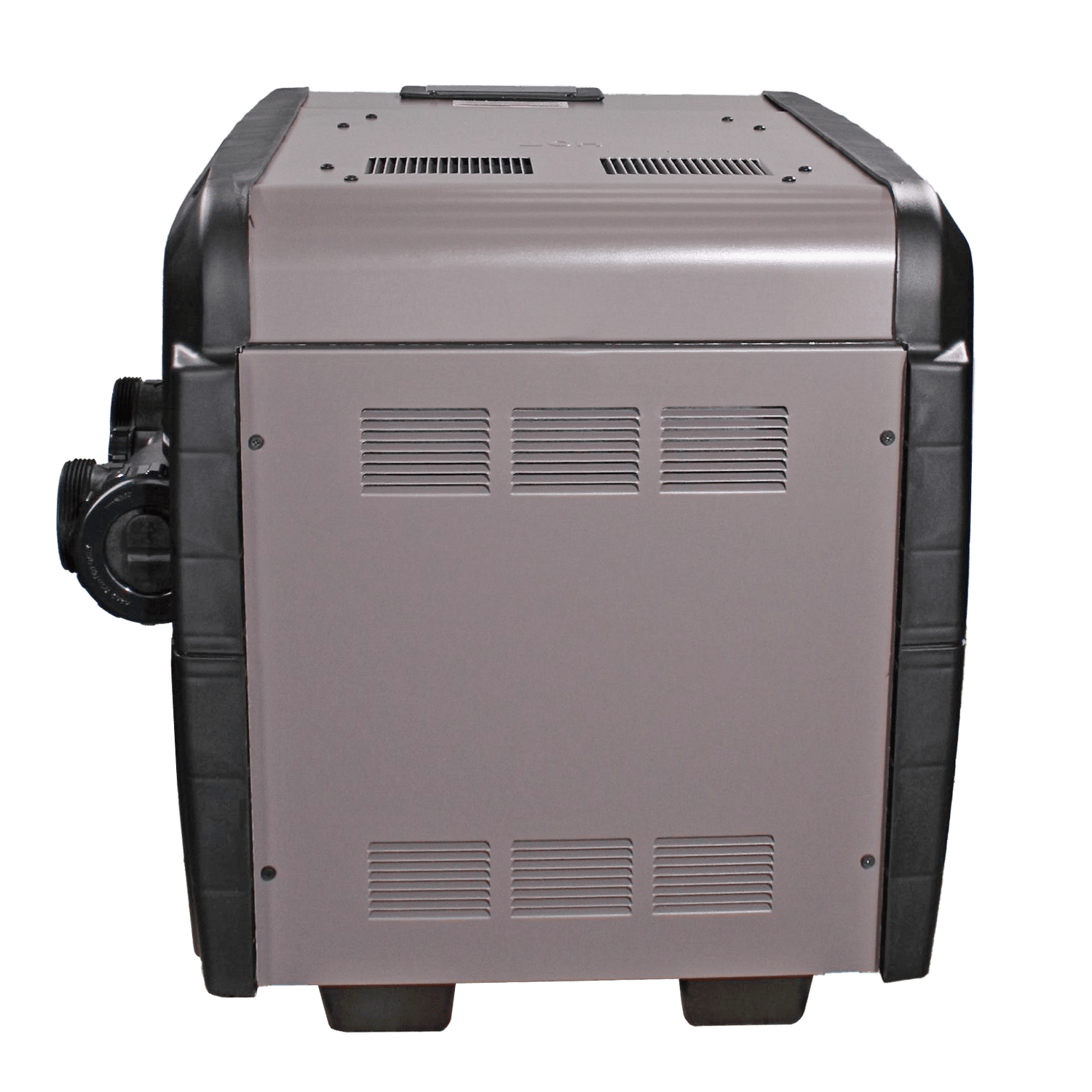

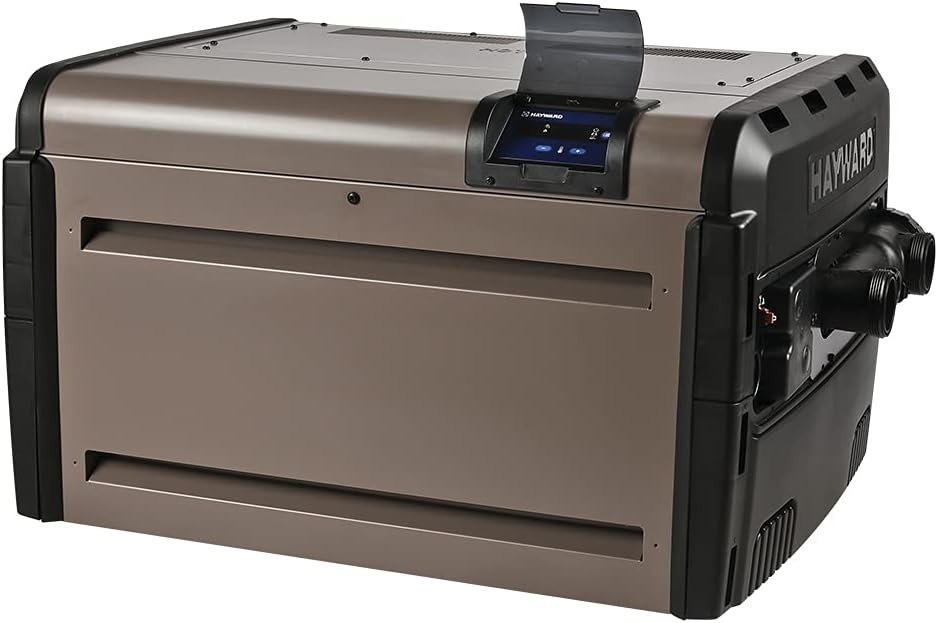

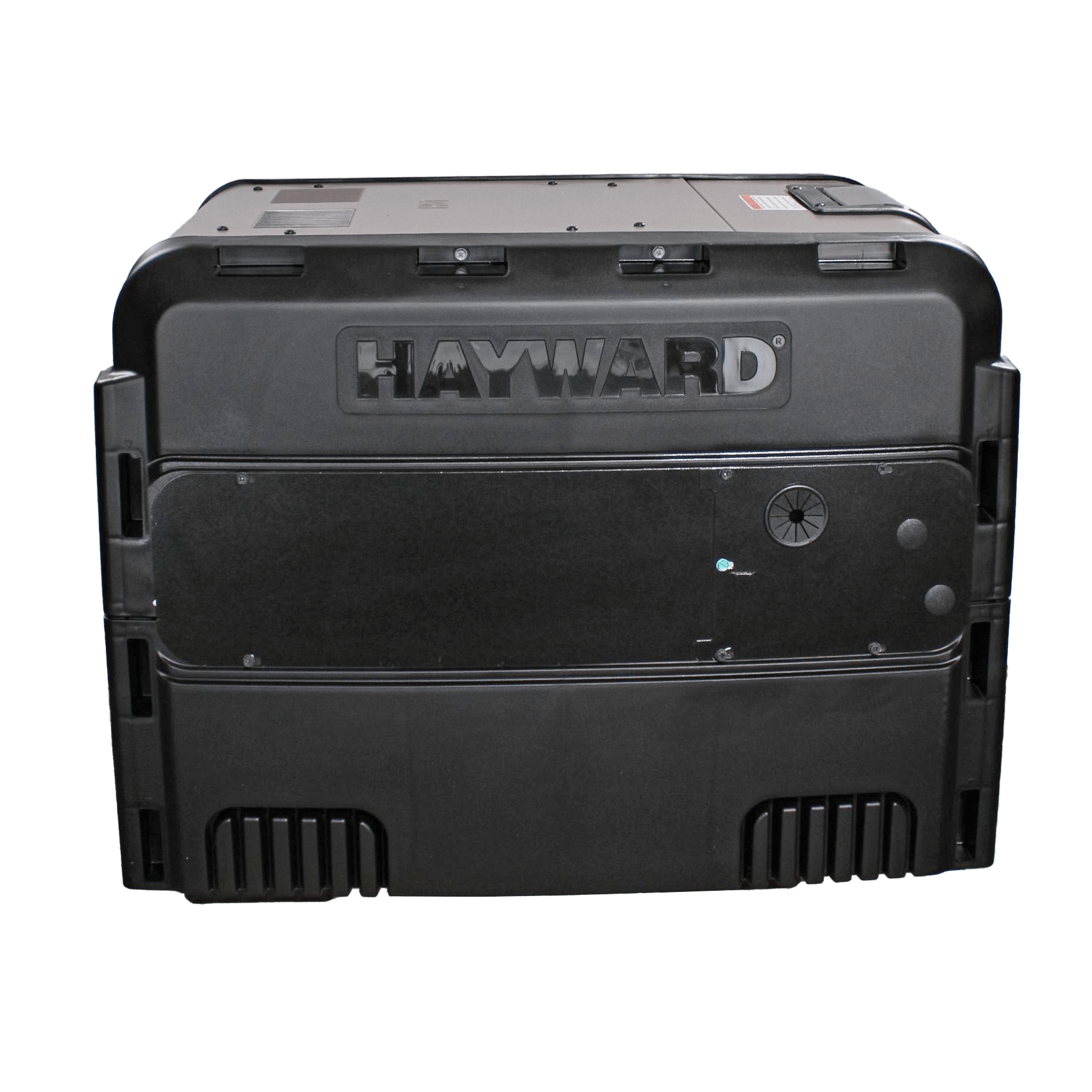

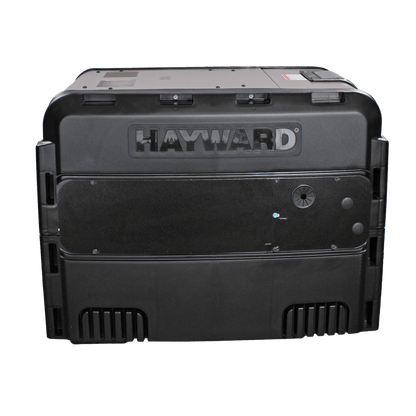

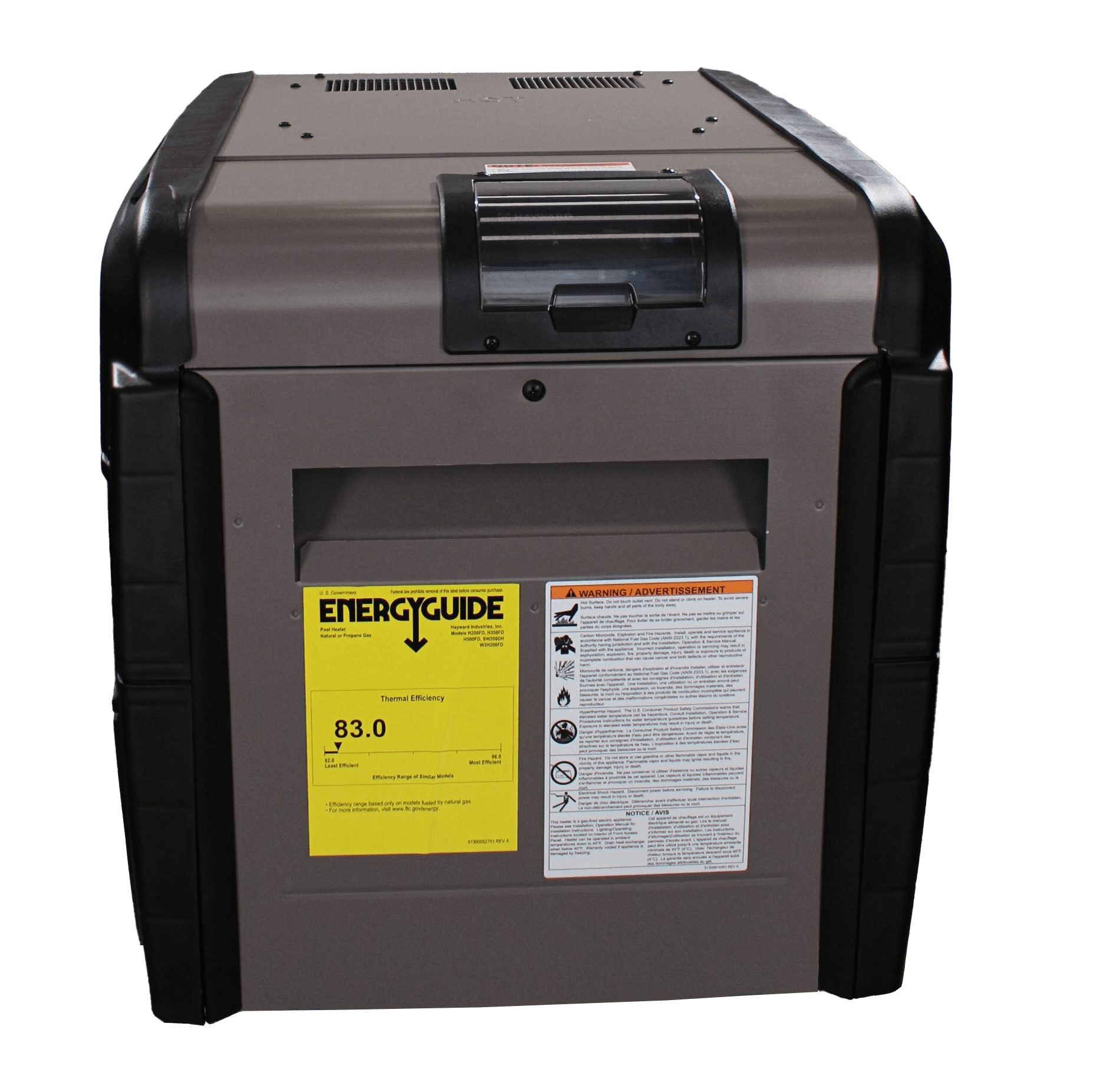

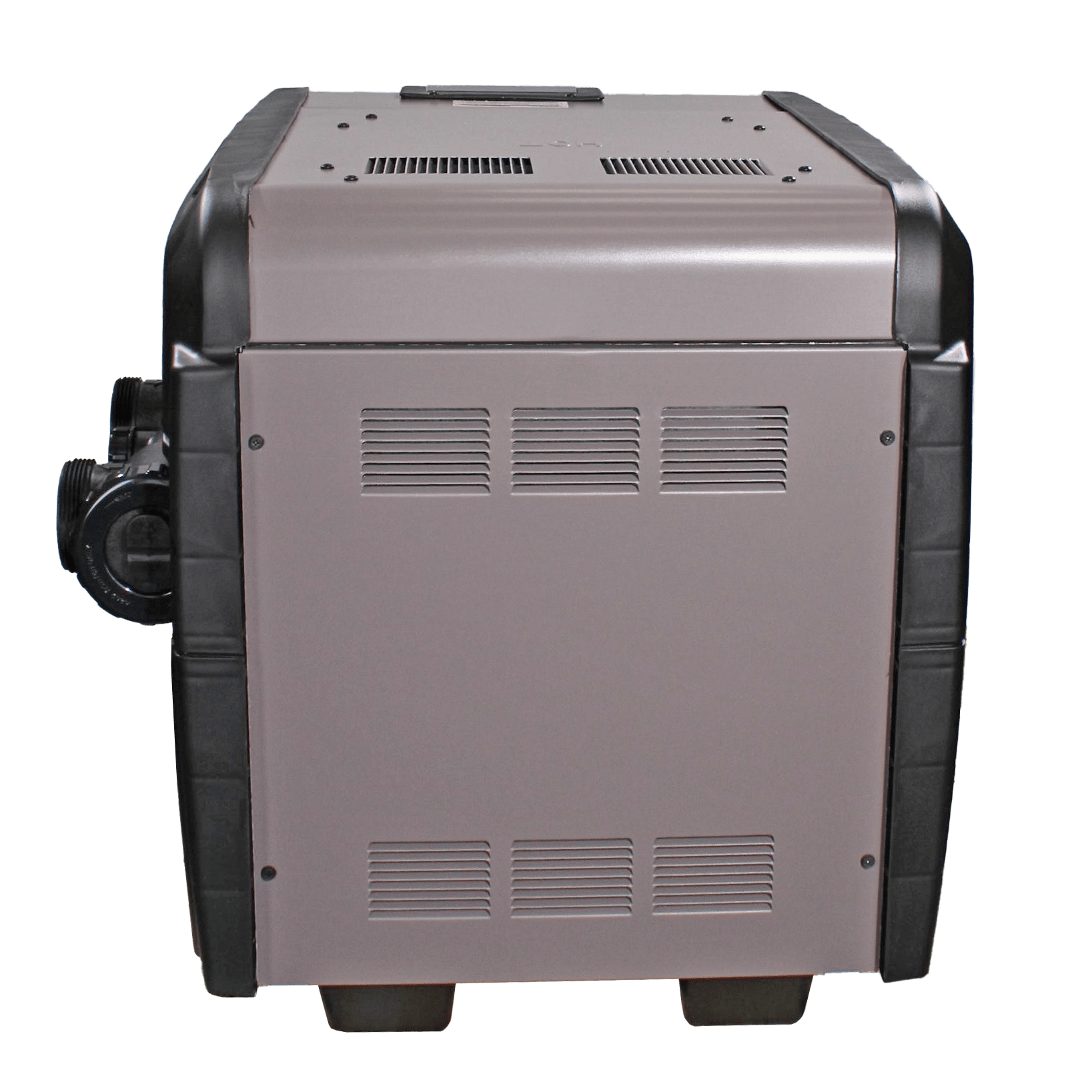

Hayward Universal H-Series Natural Gas Heater 200,000 BTUs
The Hayward Universal H-Series gas heater is the “universal” energy-efficient remedy for any new or existing pool or spa. An industry-leading hydraulic design reduces circulation pump run time to provide energy savings of up to 18% when compared to less efficient competitors. The energy efficiency of the Universal H-Series gas heater combines with environmentally friendly low NOx emissions, a standard cupro nickel heat exchanger, and ultimate installation flexibility to responsibly heat a pool or spa today and for years to come.
Features and Benefits:
- Standard cupro nickel heat exchanger
- Excellent salt water and chemical corrosion resistance
- Exclusive "Totally Managed" cupro nickel heat exchanger water flow
- Same water velocity through all tubes for faster heating
- Patented header by-pass design
- Reduction in pump run-time results in significant cost savings
- 2in x 2 1/2in CPVC union plumbing connections
- The forced draft system constantly moves air through the combustion chamber at a precise flow rate, eliminating the need for a high-wind stack
- Low NOx emissions - meets clean air quality standards
| Attribute |
Value |
| Active Defrost |
No |
| Boost Mode |
No |
| Brand |
Hayward |
| Channel |
Open Line |
| Circuit Amps |
5.5000 |
| Cooling Capability |
No |
| Fuel Type |
Natural Gas |
| Heating Capacity (BTU/hr) |
200000 |
| Hertz |
60 Hz |
| Kilowatts |
59 kW |
| Low Ambient Operation |
Yes |
| Master Carton Qty |
1 |
| Maximum Fuse Breaker Size (Amps) |
15.0000 |
| Pallet Qty |
1 |
| Phase Heaters |
1.0000 |
| Pool Type |
In Ground |
| Product Dimensions |
24 " x 22 " x 29.5 " |
| Product Weight |
140 lb |
| Product Width |
22 in |
| Rear Clearance - Heaters |
6 in |
| Refrigerant |
No |
| Series Heaters |
Universal H Series |
| Side Clearance - Heaters |
12 in |
| Silent Mode |
No |
| Water Flow Rate Max |
125 |
| Water Flow Rate Min |
20 |
-
Please Note: We recommend professional installation, or the manufacturer's warranty may be void. See the owner's manual for a full description of warranty claims and coverage details.
