Brand: Hayward | Part #: W3H150FDN

Hayward Universal H-Series, W3H150FDN, Natural Gas Heater, Low NOx | 150,000 BTU

$2,419.00 USD
$2,419.00 USD
Shipping calculated at checkout.

Features and Benefits:

  • Standard cupro nickel heat exchanger
  • Excellent salt water and chemical corrosion resistance
  • Exclusive "Totally Managed" cupro nickel heat exchanger water flow
  • Same water velocity through all tubes for faster heating
  • Patented header by-pass design
  • Reduction in pump run-time results in significant cost savings
  • 2in x 2 1/2in CPVC union plumbing connections
  • The forced draft system constantly moves air through the combustion chamber at a precise flow rate, eliminating the need for a high-wind stack
  • Low NOx emissions - meets clean air quality standards

Product Description:

Hayward Universal H-Series Natural Gas Heater 150,000 BTUs. This product offers a range of features such as The Hayward Universal H-Series Natural Gas Heater W3H150FDN is an advanced pool heater designed to provide efficient and reliable heating performance. Its cutting-edge technology ensures consistent heating while maintaining an excellent level of energy efficiency, This natural gas heater is capable of generating 150,000 BTU, providing significant heat output for warming your pool or spa to your desired temperature quickly and efficiently, As specified in its name, the Hayward W3H150FDN uses natural gas as its fuel source. It is configured for a natural gas line, making it a suitable choice if natural gas is your preferred or available fuel source, Included is a Hayward warranty offering you peace of mind and security in your purchase., Constructed from durable and corrosion-resistant materials, this heater is designed to withstand the rigors of outdoor environments, This heater features a straightforward installation process, with comprehensive instructions provided. A manufacturer's warranty is included, offering you peace of mind and security in your purchase. Technical specifications and specific features include: Weight: 151.0 kg.

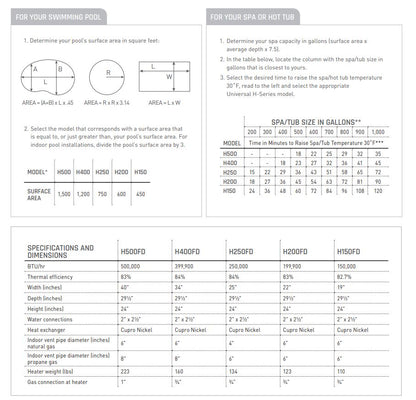

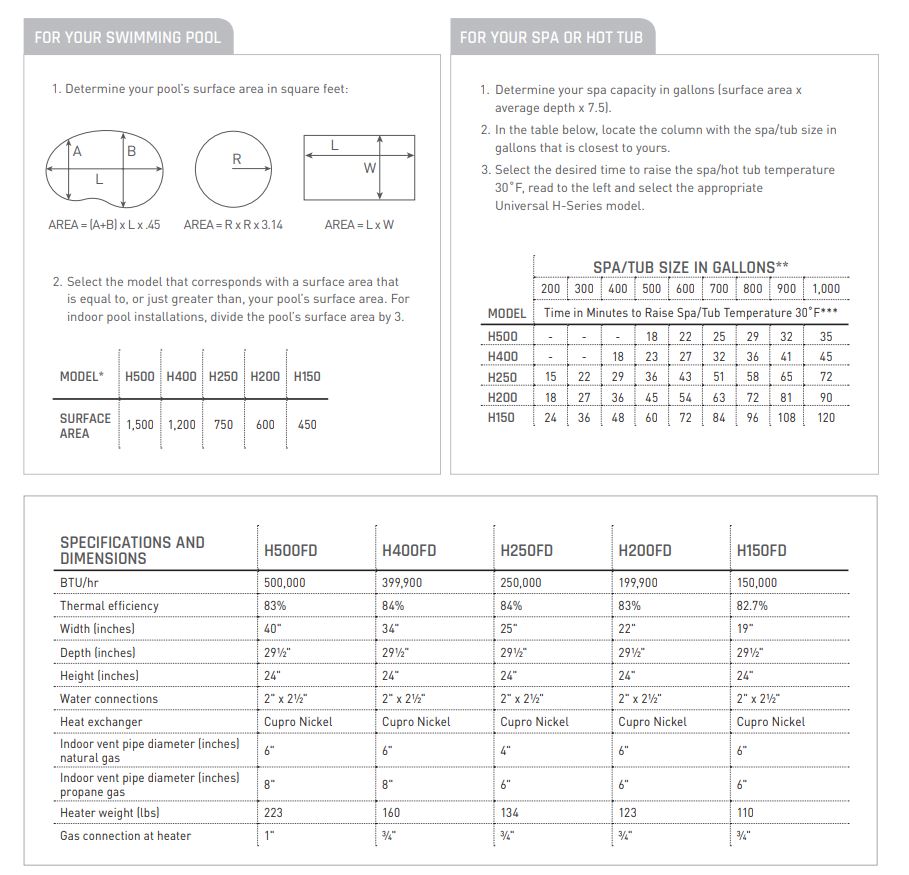

Technical Specifications & Specific Features:

Active Defrost No
Application New Construction, Aftermarket
Boost Mode No
Brand Hayward
Channel Open Line
Circuit Amps 5.5000
Cooling Capability No
Fuel Type Natural Gas
GTIN 610377387194
Heating Capacity (BTU/hr) 150000
Hertz 60 Hz
Kilowatts 44 kW
Labor Warranty None
Low Ambient Operation Yes
Master Carton Qty 1
Maximum Fuse Breaker Size (Amps) 15.0000
Pallet Qty 1
Parts Warranty 3-year
Phase Heaters 1.0000
Pool Type In Ground
Product Dimensions 24 " x 19 " x 29.5 "
Product Height 24 in
Product Length 29.5 in
Product Weight 135 lb
Product Width 19 in
Rear Clearance - Heaters 6 in
Refrigerant No
Series Heaters Universal HSeries
Shipping Dimensions 30.6 " x 32.8 " x 33.3 "
Shipping Height 30.6 in
Shipping Length 33.3 in
Shipping Weight 150 lb
Shipping Width 32.8 in
Side Clearance - Heaters 12 in
Silent Mode No
Water Flow Rate Max 125
Water Flow Rate Min 20
