Hayward UCL 300W Wall Mount Transformer, 120V | LTBUY11300

The Hayward® 300 Watt Pool Transformer LTBUY11300 is a low voltage transformer for use with pool and spa lights and submersible fixtures. It can be used to power up to four Hayward Universal ColorLogic® and CrystaLogicTM LED lights and offers a dedicated mounting location for the Coupler LKBUN1000 (necessary when using a powerline networking connection from a Hayward Pro Logic® controller).  The LTBUY11300 has 3 output options, 12v, 13v and 14v.

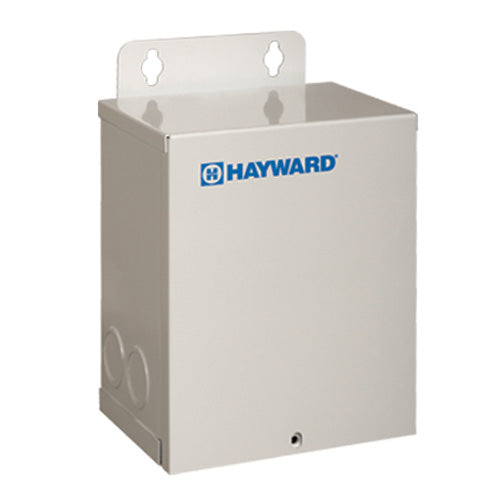

Enclosure Size:  7 1/4” (19.4 cm) high x 5 1/4” (13.3 cm) wide x 4 1/2” (11.4 cm) deep. Mounting brackets top and bottom.

Enclosure Type:  (A) 0.054” corrosion resistant steel with electrostatically applied white coating.

Knockouts: Total of ten 1/2”-3/4” combination. (4) bottom, (2) right side, (2) left side

Electrical -

Input: 120v, 60Hz, 3A max.

Output:  12, 13 or 14 Vac @ 300W max

For field connections, use wires suitable for at least 90ºC (194ºF)
