Product Features & Benefits:
- Available in either natural gas or propane
- 135K BTU
- Durable cupro nickel heat exchanger
-
Industry-leading hydraulic performance with faster speed-to-heat capabilityIntuitive and easy-to-operate electronic panel
-
Exclusive "Totally Managed" cupro nickel heat exchanger water flow
- Low NOx emissions—meets clean air quality standards
Product Description:

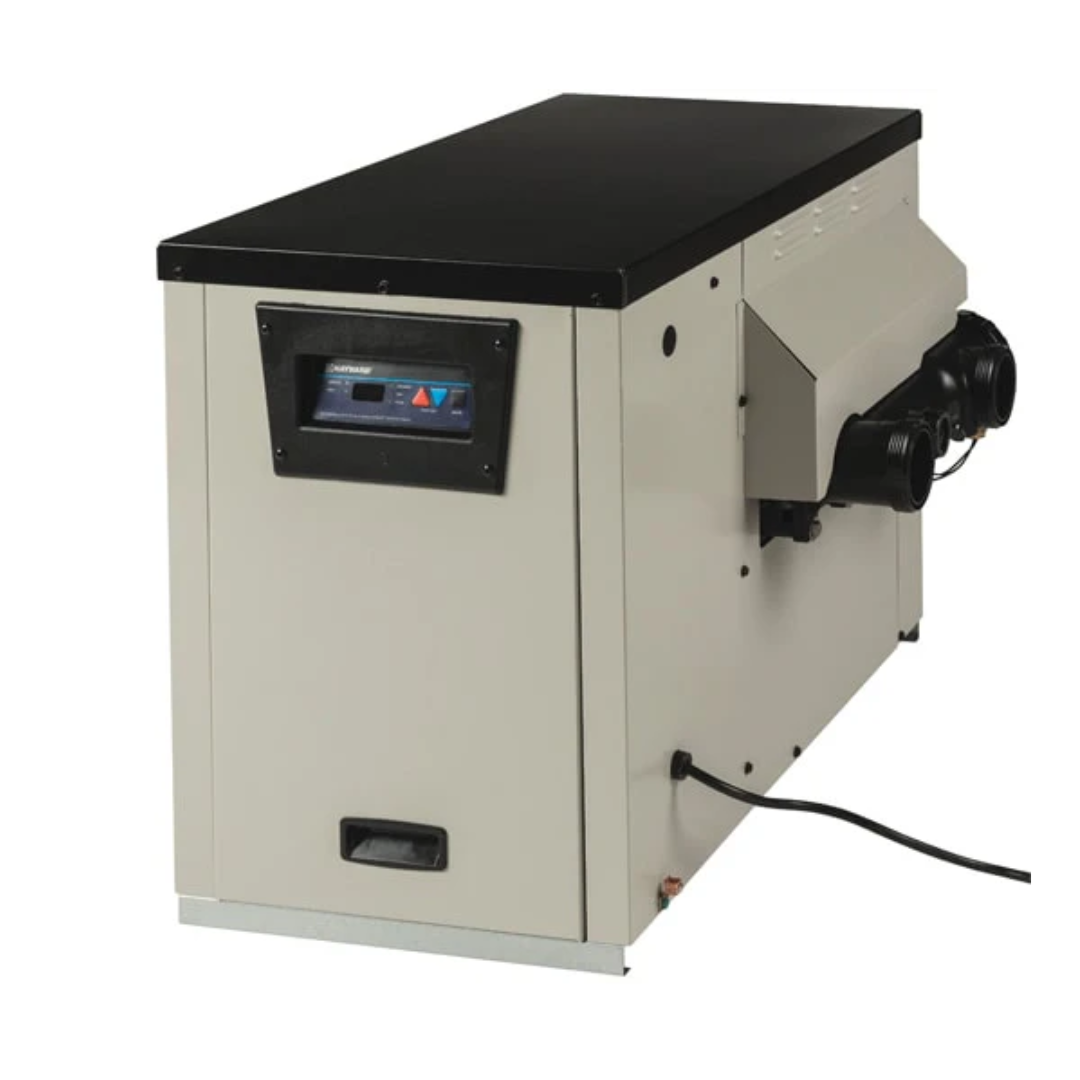

Hayward’s H-Series 135,00 BTU gas heaters for above-ground pools boast industry-leading hydraulic performance along with easy operation. Their extreme durability and environmentally friendly design ensure season after season of premium heating performance.

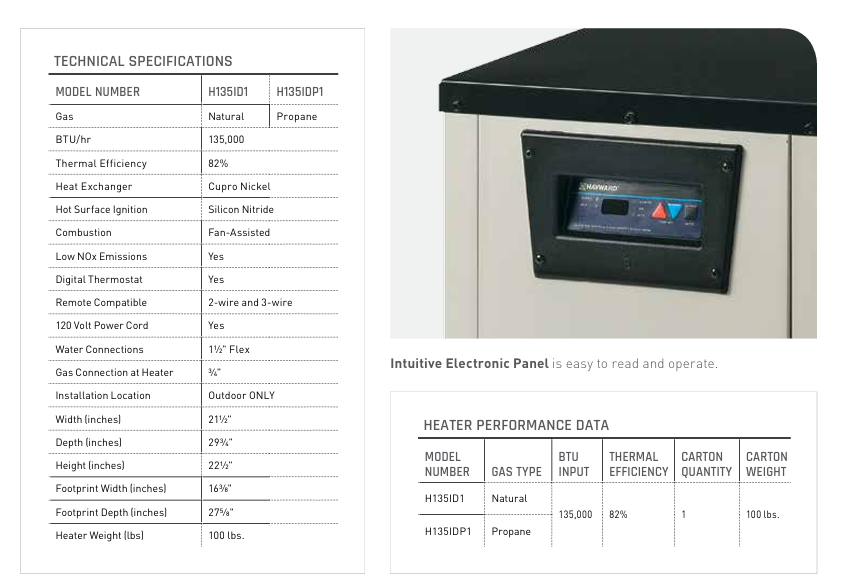

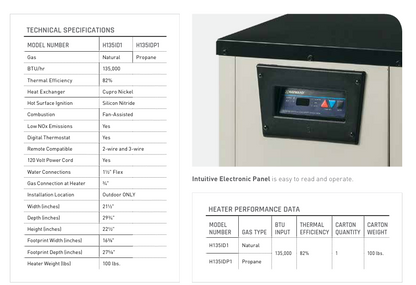

Technical Specifications & Specific Features:
| Active Defrost |
No |
| Boost Mode |
No |
| Brand |
Hayward |
| Channel |
Open Line |
| Circuit Amps |
5.5000 |
| Cooling Capability |
No |
| Fuel Type |
Natural Gas |
| GTIN |
610377407113 |
| Heating Capacity (BTU/hr) |
135000 |
| Hertz |
60 Hz |
| Kilowatts |
40 kW |
| Labor Warranty |
None |
| Low Ambient Operation |
Yes |
| Master Carton Qty |
1 |
| Maximum Fuse Breaker Size (Amps) |
15.0000 |
| Pallet Qty |
1 |
| Parts Warranty |
2-year |
| Phase Heaters |
1.0000 |
| Pool Type |
Above Ground |
| Product Dimensions |
22.6 " x 21.4 " x 30.3 " |
| Product Height |
22.6 in |
| Product Length |
30.3 in |
| Product Weight |
100 lb |
| Product Width |
21.4 in |
| Rear Clearance - Heaters |
6 in |
| Refrigerant |
Yes |
| Series Heaters |
H Series |
| Shipping Dimensions |
27.3 " x 25 " x 37 " |
| Shipping Height |
27.3 in |
| Shipping Length |
37 in |
| Shipping Weight |
117.5 lb |
| Shipping Width |
25 in |
| Side Clearance - Heaters |
12 in |
| Silent Mode |
No |
| Water Flow Rate Max |
125 |
| Water Flow Rate Min |
20 |
