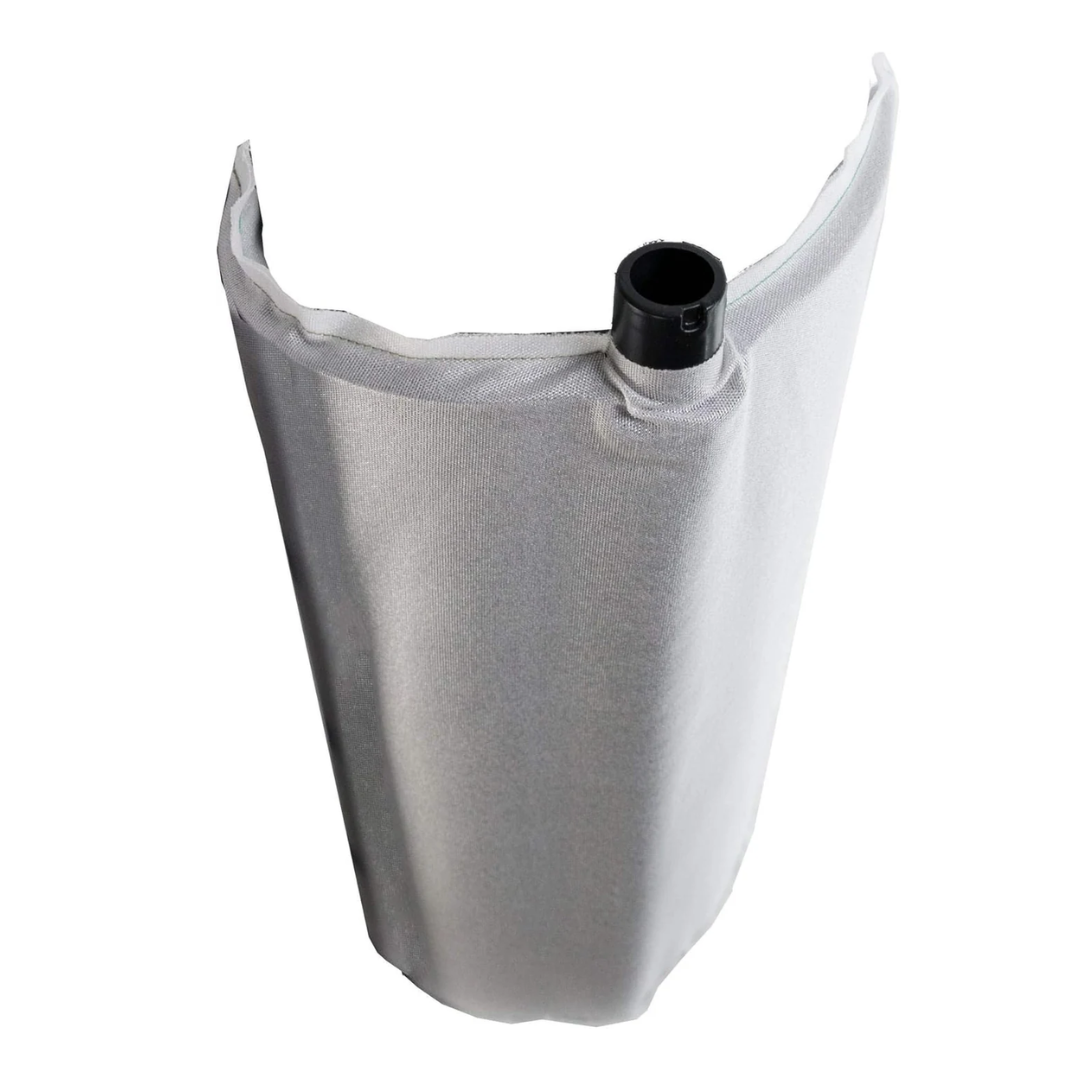

Unicel FG-1248 Replacement Filter for Pentair SM

Name: Unicel FG-1248 Replacement Filter for Pentair SM
Brand: Unicel
SKU: UNFFG1248
Price: 22.67 USD
Availability: InStock

$22.67 USD

Shipping calculated at checkout.

Overview

The Unicel FG-1248 is a vertical-grid DE filter element assembly engineered as a direct replacement for Pentair / Purex SM and SMBW series DE filter housings, providing 48 sq ft of total filtration area across a complete grid set configuration. Construction consists of nylon mesh fabric over powder-coated steel grid frames, manifold-fed via standard center-hub collection geometry. Grid set includes seven full-length sectors plus one partial sector, with grid heights and manifold port dimensions held to OEM tolerance for direct manifold seating without shim or adapter hardware. Nominal DE media loading is 4.8 lb diatomaceous earth at the manufacturer-specified 1 lb per 10 sq ft ratio. Rated operating pressure: 50 PSI maximum; rated continuous service temperature: 104°F. Filtration efficiency under standard DE media loading: 3–5 microns nominal, suitable for polishing-grade water clarity in residential and light commercial service.

Service interval recommendations: backwash when ΔP rises 5–8 PSI above clean-filter operating baseline; recharge with fresh DE media at the 1 lb per 10 sq ft ratio after each backwash cycle. Annual service: full disassembly, manifold inspection, grid fabric inspection for tears exceeding 1 inch, delamination from frame, or frame corrosion at weld points. Replace complete grid set at first evidence of fabric failure or frame degradation; partial replacement of individual sectors is not recommended due to differential loading across the manifold. Chemical compatibility: nylon grid fabric tolerates continuous service at ≤ 10 ppm free available chlorine and standard bromine sanitization; muriatic acid soak at 1:20 dilution is compatible for calcium scale removal (20 minutes maximum exposure, thorough rinse required prior to reinstallation). Enzyme cleaners compatible without restriction. Standard Unicel 90-day manufacturing defect warranty applies through authorized distribution.

What's Included

Your order includes the selected quantity of DE filter grid sets. Each unit is individually inspected for quality before shipping.

Have a question? We're here to help.

Share This Product

Product Specs

Product SKU	FG-1248
Replaces OEM	SM/SMBW 2048 / 4048
Filter Model	Pentair SM
Filtration Area
Length	25-3/8"
Outer Diameter	10-3/4"
Center Hole
Media
Endcap Material	Durable Polyurethane
Pleat Count
Pack Options

Compatibility Table

Brand	Part Number	Type	Status
Unicel	FG-1248	OEM-Compatible	Compatible
Pentair / Purex	SM/SMBW 2048 / 4048	OEM Original	OEM
Pleatco	PXG2448	Aftermarket	Compatible
Filbur	FC-9240	Aftermarket	Compatible
Other	HF-PXG48-01	Aftermarket	Compatible

Unicel FG-1248 Replacement Filter for Pentair SM

$22.67 USD

Verify Your Fit

How to Measure

Confirm all three dimensions match your existing cartridge before ordering.

Length

25-3/8" — top endcap to bottom

Outer Diameter

10-3/4" — widest point across

Center Hole

— inside of the hole

Frequently Asked Questions

Still have questions? Our knowledgeable support agents are standing by to help.

Contact Support

What if it doesn't fit?

We back every order with an exact-fit guarantee. If it doesn't fit your filter housing, contact us within 30 days for a full refund or exchange — no hassle, no restocking fee. Call or text (732) 395-2225.

How long will these last?

With regular cleaning, expect 1–2 seasons of use. Rinse with a garden hose every 4–6 weeks, and do a deep soak in filter cleaner once or twice a season. Replace when you see collapsed pleats, tears in the media, or pressure stays high after a fresh clean.

How do I confirm this fits before I order?

Measure your existing cartridge in three spots: length end-to-end, outer diameter at the widest point, and the inner diameter of the center hole. If all three match the specs listed above, it's a direct fit.
