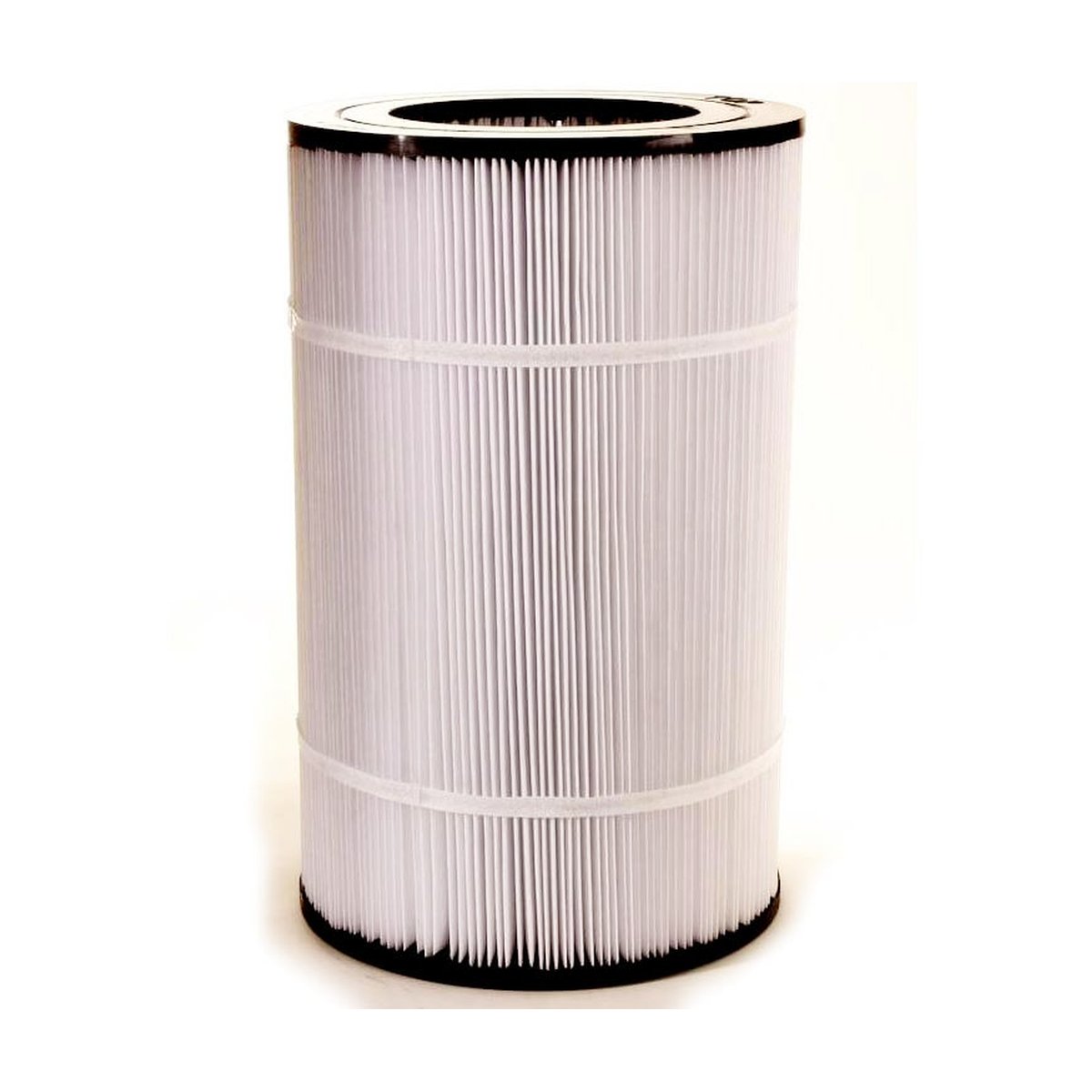

Unicel C-9407 Replacement Filter for Pentair R173215 | 75 Sq. Ft.

Overview

The Unicel C-9407 is a pleated polyester cartridge filter element rated at 75 sq ft of effective filtration area, engineered for Pentair Clean & Clear and Predator series single-cartridge filter systems. Construction consists of a Reemay nonwoven polyester media pack with nominal 20-micron filtration efficiency, seated on a structural PVC core with ABS injection-molded end caps. Standard form factor for this series: 7.0-inch OD, 3.0-inch ID inner bore, 19.625-inch overall length, with a closed bottom end cap and open-flow top end cap configured for axial-flow housing geometry. Maximum continuous operating temperature is 104°F; pressure rating supports residential and light commercial duty up to 50 PSI. UV-stabilized end cap adhesive maintains bond integrity under standard pool water chemistry exposure.

Service interval recommendation: residential installations — rinse every 4–6 weeks or at ΔP ≥ 8 PSI above clean-filter operating baseline; chemical soak with enzyme cleaner or dilute TSP every 3–6 months to remove oils and lotions resistant to standard rinsing. Annual replacement is recommended, or sooner if fabric degradation (pleat channeling, tears, delamination) is observed during inspection. For calcium scale accumulation, muriatic acid soak at 1:20 dilution is compatible (20 minutes maximum exposure) followed by thorough fresh-water rinse; ABS end cap construction tolerates standard acid wash procedures without bond degradation. Chlorine tolerance: continuous service at ≤ 10 ppm free available chlorine; bromine compatible without restriction. Post-installation, verify clean-filter operating pressure and log as baseline for subsequent ΔP-based service triggers. Standard Unicel 90-day manufacturing defect warranty applies through authorized distribution.

What's Included

Your order includes the selected quantity of replacement pool filter cartridges. Each unit is individually inspected for quality before shipping.
