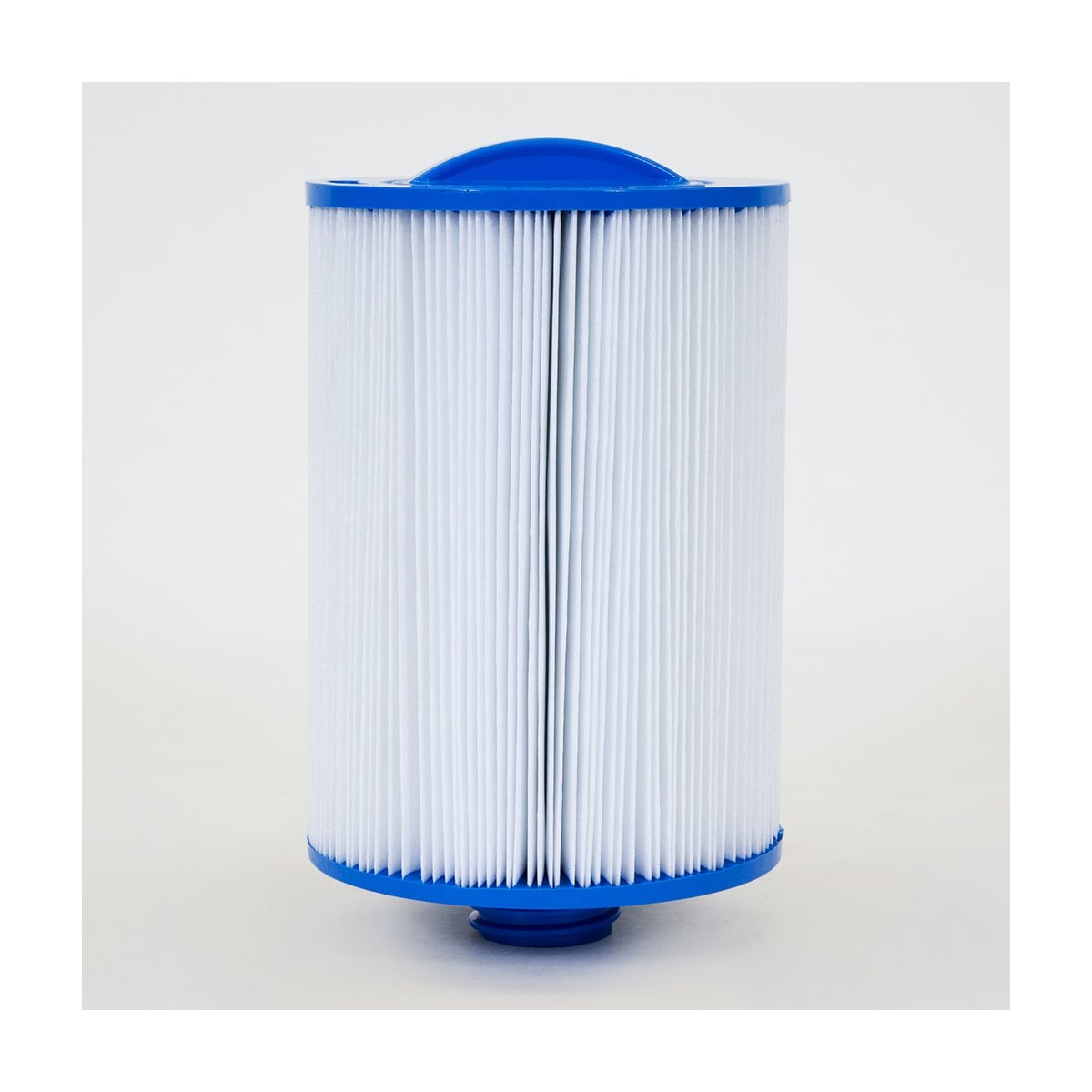

Unicel 6CH-925 Replacement Filter for Waterway 500-0025P3-SV (SAE) | 25 Sq. Ft.

Overview

The Unicel 6CH-925 is a pleated polyester spa cartridge filter element providing 25.0 sq ft of filtration area through a Reemay nonwoven polyester media pack with SAE thread end cap configuration. Dimensional specifications: 5-inch OD, 1.5-inch SAE threaded base port, 2.0-inch open top, 8.0-inch overall length, supporting low-flow, high-temperature spa circulation applications. Construction features ABS injection-molded end caps with a closed-top/threaded-bottom geometry compatible with the Waterway top-load skim filter manifold standard, seated on a structurally rigid PVC core. Nominal filtration efficiency: 15 microns under standard test conditions. Maximum continuous operating temperature: 115°F; rated pressure range 5–15 PSI, consistent with residential spa pump head specifications. End cap adhesive is UV-stabilized and chemically inert under standard spa water chemistry.

Service interval recommendation: rinse with fresh water every 2–4 weeks; chemical soak (dilute TSP or enzyme cleaner) at 4–6 week intervals to remove body oils, surfactants, and cosmetic residues that resist standard rinsing. Replacement is recommended at 12–15 month intervals for typical residential spa use, or upon ΔP rise of ≥ 5 PSI above clean operating baseline, whichever occurs first. Chemical compatibility: polyester media and ABS end caps tolerate continuous service at ≤ 10 ppm free available chlorine or ≤ 30 ppm total bromine; muriatic acid soak (1:20 dilution, 20-minute maximum exposure) compatible for calcium scale removal — rinse thoroughly before reinstallation. Enzyme cleaners compatible without restriction. Verify ozone compatibility before deployment in ozone-primary sanitization systems. Standard Unicel 90-day manufacturer's defect warranty applies through authorized distribution.

What's Included

Your order includes the selected quantity of replacement pool filter cartridges. Each unit is individually inspected for quality before shipping.
