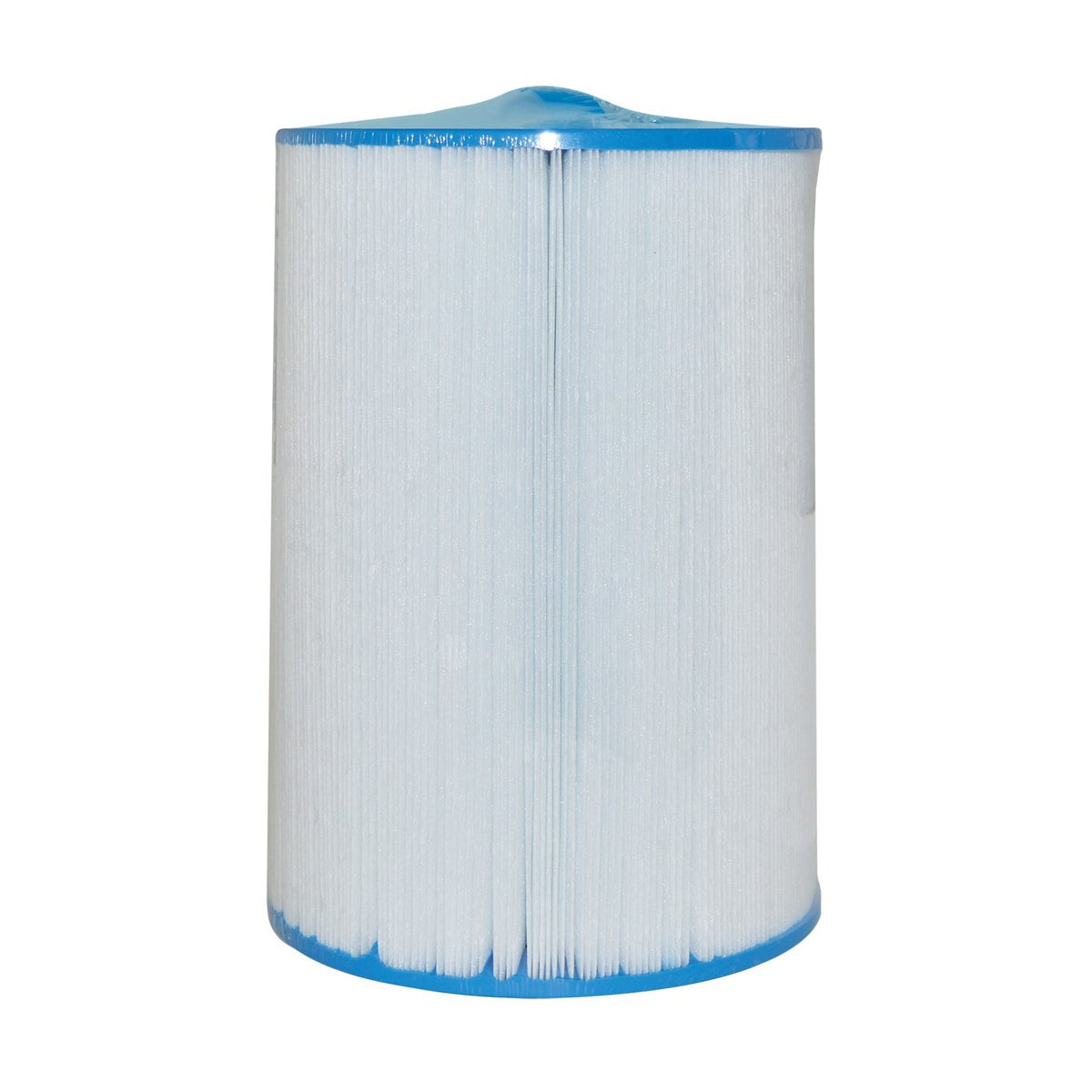

Unicel 7CH-552 Filter for Dimension One Spas 752-5015 (2" MPT) | 52 Sq. Ft.

Overview

The Unicel 7CH-552 is a pleated polyester spa cartridge filter element from Unicel's 7CH specialty commercial series, engineered specifically for Dimension One Spas circulation systems and providing 52.0 sq ft of filtration surface area through a high-pleat-count Reemay nonwoven polyester media pack. Dimensional specifications conform to the Dimension One 2-inch MPT (male pipe thread) mounting interface integrated into the bottom end cap, allowing direct thread-in installation to the spa's filter standpipe without separate manifold hardware. Construction features ABS injection-molded end caps with a closed top and threaded 2" MPT bottom fitting, mated to a structural core sized for the elevated pressure cycling typical of spa pumps. Nominal filtration efficiency: 15 microns. Maximum rated continuous service temperature: 115°F, with intermittent excursions to 120°F per Unicel testing protocol. The 7CH-552 delivers the highest media area available in the threaded-base Dimension One configuration, extending service cycles in high-bather-load applications.

Spa cartridge service intervals are accelerated relative to pool filtration due to elevated water temperature, lower turnover volume, and concentrated bather-introduced oils and surfactants. Recommended service: fresh-water rinse every 2–4 weeks; chemical soak (dilute TSP solution or commercial enzyme cleaner) every 4–6 weeks to displace lipid and cosmetic residue that resists mechanical rinsing. Replacement trigger: ΔP ≥ 5 PSI above clean-filter operating baseline, or 12-month calendar interval, whichever occurs first; high-use spas (daily occupancy) typically require replacement at 6–9 months. Chemical compatibility: polyester media and ABS end caps tolerate continuous service at ≤ 10 ppm free available chlorine or ≤ 30 ppm total bromine. Muriatic acid soak at 1:20 dilution is compatible for calcium scale removal (20-minute maximum exposure, thorough rinse before reinstallation). Enzyme cleaners compatible without restriction. Inspect the 2" MPT threads at each service cycle for debris or scale that could compromise se

What's Included

Your order includes the selected quantity of replacement spa filter cartridges. Each unit is individually inspected for quality before shipping.
