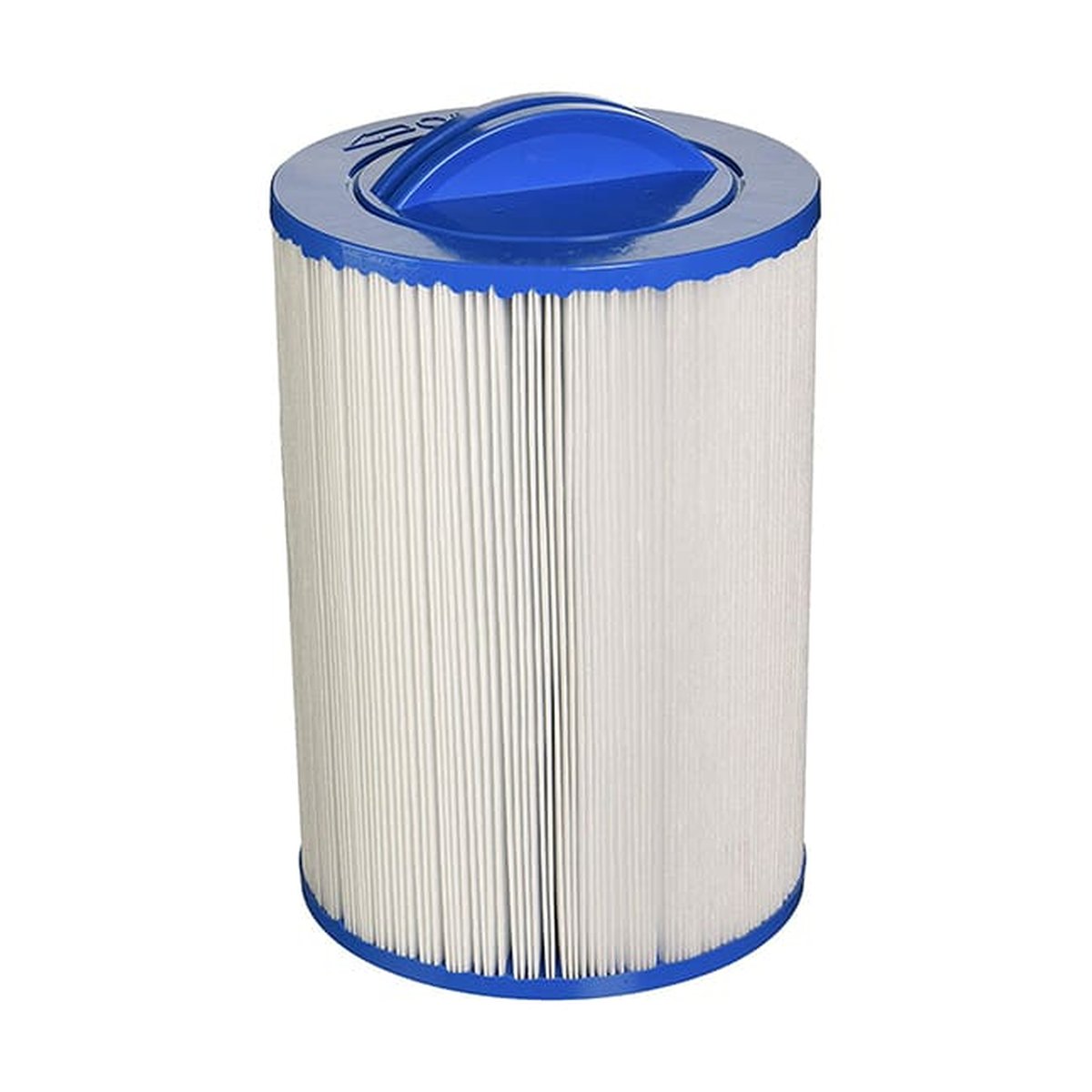

Unicel 5CH-35 Replacement Filter for Maax PMAX50P4 | 35 Sq. Ft.

Overview

The Unicel 5CH-35 is a pleated polyester cartridge filter element engineered for high-capacity spa and portable pool applications, delivering 35.0 sq ft of effective filtration area through a high-density Reemay nonwoven polyester media pack. Dimensional specifications conform to the 5CH-family form factor: 4-15/16-inch OD, 2-1/8-inch ID with molded SAE thread, and 7-inch overall length, configured with one open end (threaded) and one closed end. End caps are ABS injection-molded for chemical resistance and dimensional stability under sustained spa operating temperatures up to 104°F. Nominal filtration efficiency falls within the 20-micron range under standard test conditions, providing the surface area and dirt-holding capacity required for high-bather-load spa environments and small-volume above-ground pool circulation loops.

Service interval recommendation: rinse with fresh water every 2–4 weeks under typical spa duty cycles; chemical soak (dilute TSP or commercial enzyme cleaner) every 4–6 weeks to remove accumulated body oils, surfactants, and cosmetic residues that resist rinse-only cleaning. Replace the element at ΔP ≥ 5 PSI above clean-filter operating baseline, or at 12–15 months of service, whichever occurs first; reduce replacement cycle to 6–9 months for spas operating under continuous high-bather load. Chemical compatibility: continuous service at ≤ 10 ppm free available chlorine or ≤ 30 ppm total bromine; muriatic acid soak at 1:20 dilution compatible for calcium scale remediation (20-minute maximum exposure, followed by thorough fresh-water rinse). ABS end cap construction is fully compatible with standard acid wash protocols. Standard Unicel 90-day manufacturer's defect warranty applies through authorized distribution channels.

What's Included

Your order includes the selected quantity of replacement spa filter cartridges. Each unit is individually inspected for quality before shipping.
