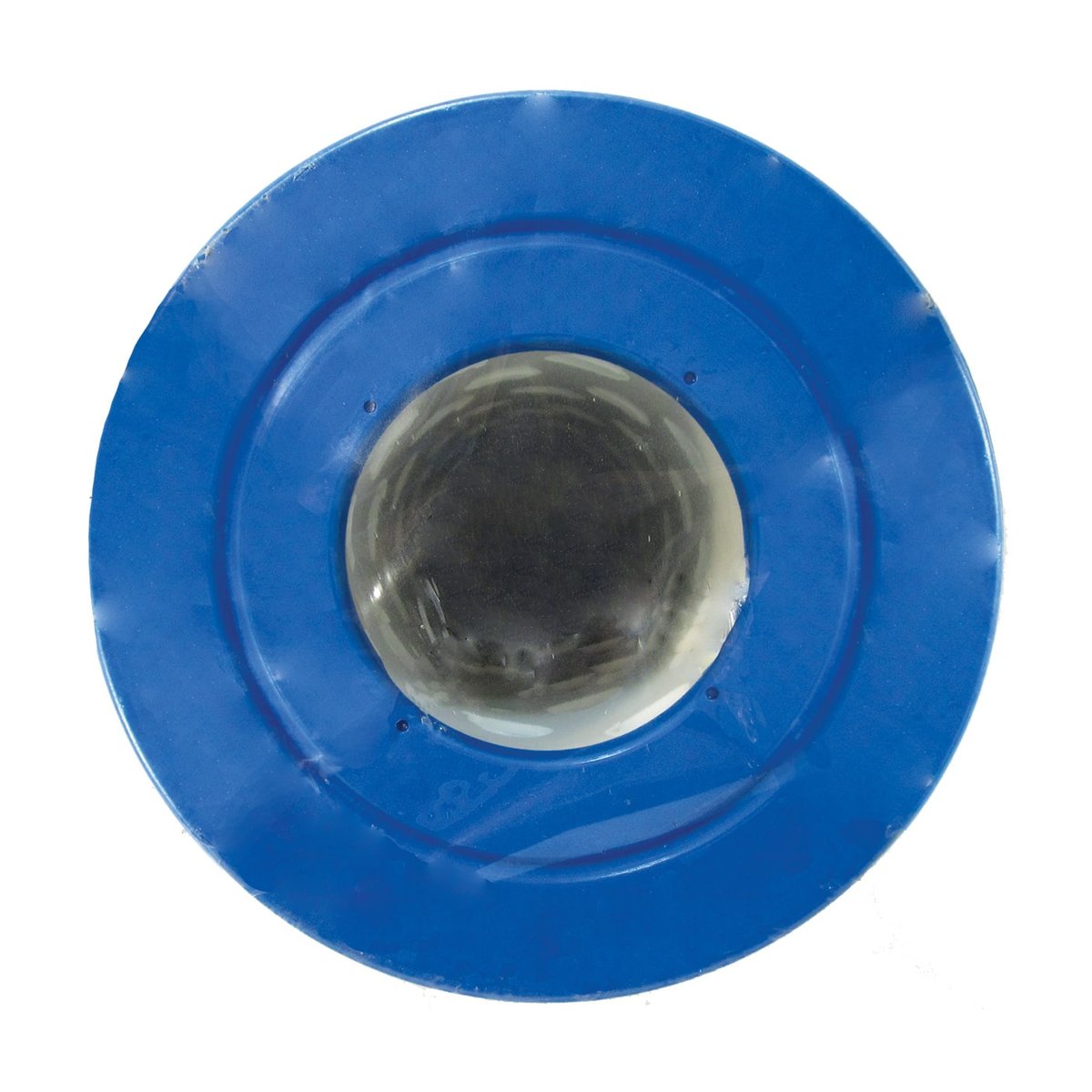

Unicel C-4440 Replacement Filter for Sundance Spas 6540-501 | 40 Sq. Ft.

Overview

The Unicel C-4440 is a pleated polyester spa cartridge filter element providing 40.0 sq ft of filtration area in a compact, high-capacity form factor engineered for Sundance Spas circulation systems. Construction consists of Reemay nonwoven polyester media at nominal 15-micron filtration efficiency, supported by injection-molded ABS end caps in a closed-bottom, threaded-top configuration matched to the Sundance 6540-501 housing interface. The threaded top end cap provides a positive seal against the filter standpipe, eliminating bypass under operating conditions. Element is rated for continuous service to 115°F with intermittent excursions to 120°F acceptable per manufacturer testing protocol. Operating pressure range conforms to standard spa circulation pump output: 5–15 PSI nominal. The 40.0 sq ft media area supports extended service intervals between rinse cycles relative to lower-capacity spa elements, reducing maintenance frequency in high-bather-load applications.

Service interval recommendation: rinse with fresh water every 2–4 weeks under standard residential bather load; chemical soak in dilute TSP or commercial enzyme cleaner every 4–6 weeks to remove accumulated body oils, lotions, and surfactant residues that resist water rinse. Replacement trigger: ΔP ≥ 5 PSI above clean-filter operating baseline, or 12-month calendar interval, whichever occurs first; spas in continuous-use or high-bather-load service should be evaluated at 6-month intervals. Chemical compatibility: polyester fabric and ABS end caps tolerate continuous operation at ≤ 10 ppm free available chlorine or ≤ 30 ppm total bromine; muriatic acid soak at 1:20 dilution is compatible for calcium scale remediation (20-minute maximum exposure, thorough rinse required before reinstallation). Enzyme cleaners compatible without restriction. Standard Unicel 90-day manufacturing defect warranty applies through authorized distribution.

What's Included

Your order includes the selected quantity of replacement spa filter cartridges. Each unit is individually inspected for quality before shipping.
